Телескопические погрузчики

At Jianghe, we are dedicated to manufacturing world-leading telehandlers! The Jianghe-branded telehandler officially launched in 2017. Since then, Jianghe has adhered to the principles of positive values, top-tier performance and high reliability for earning wide-spread market recognition.

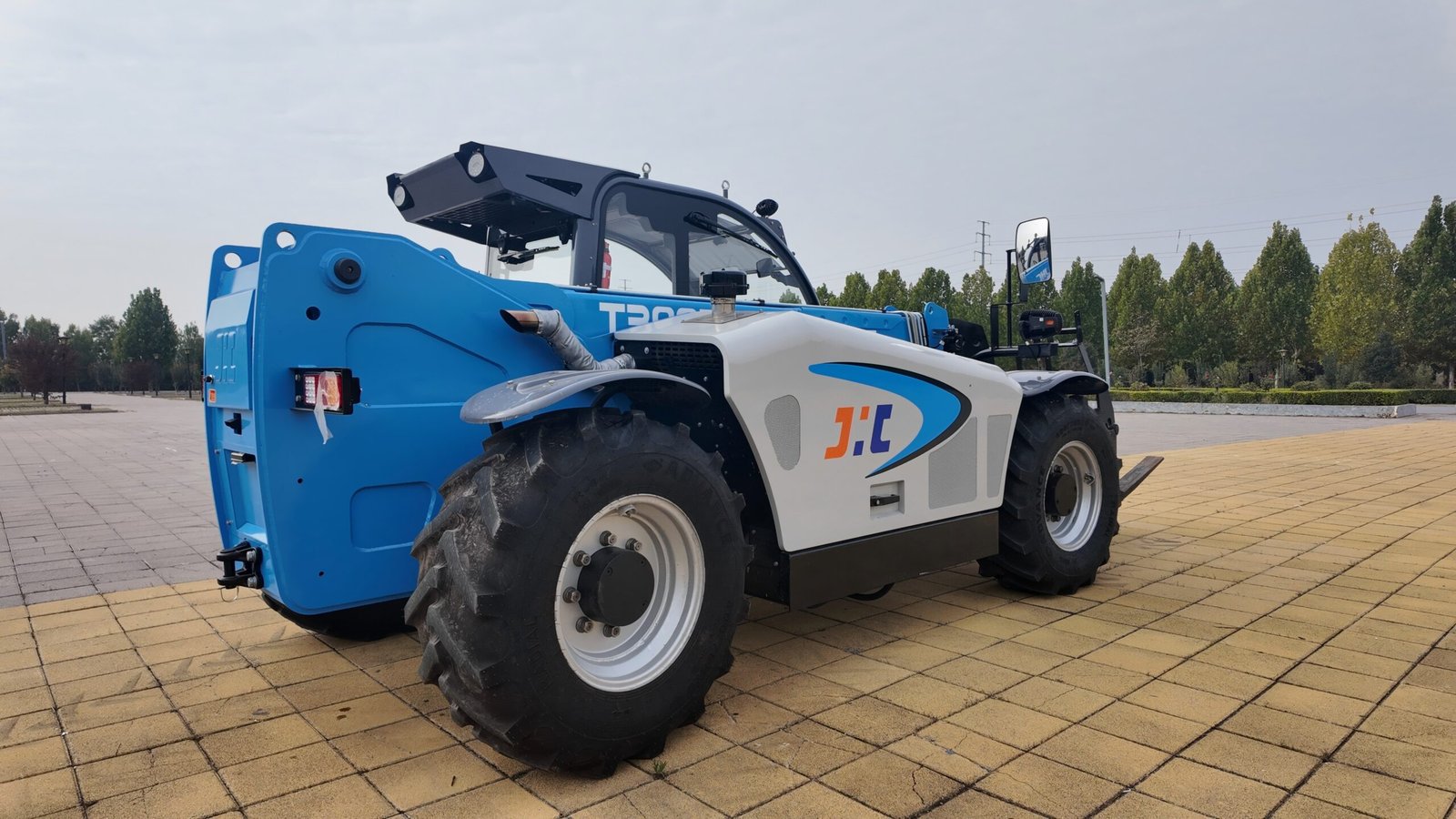

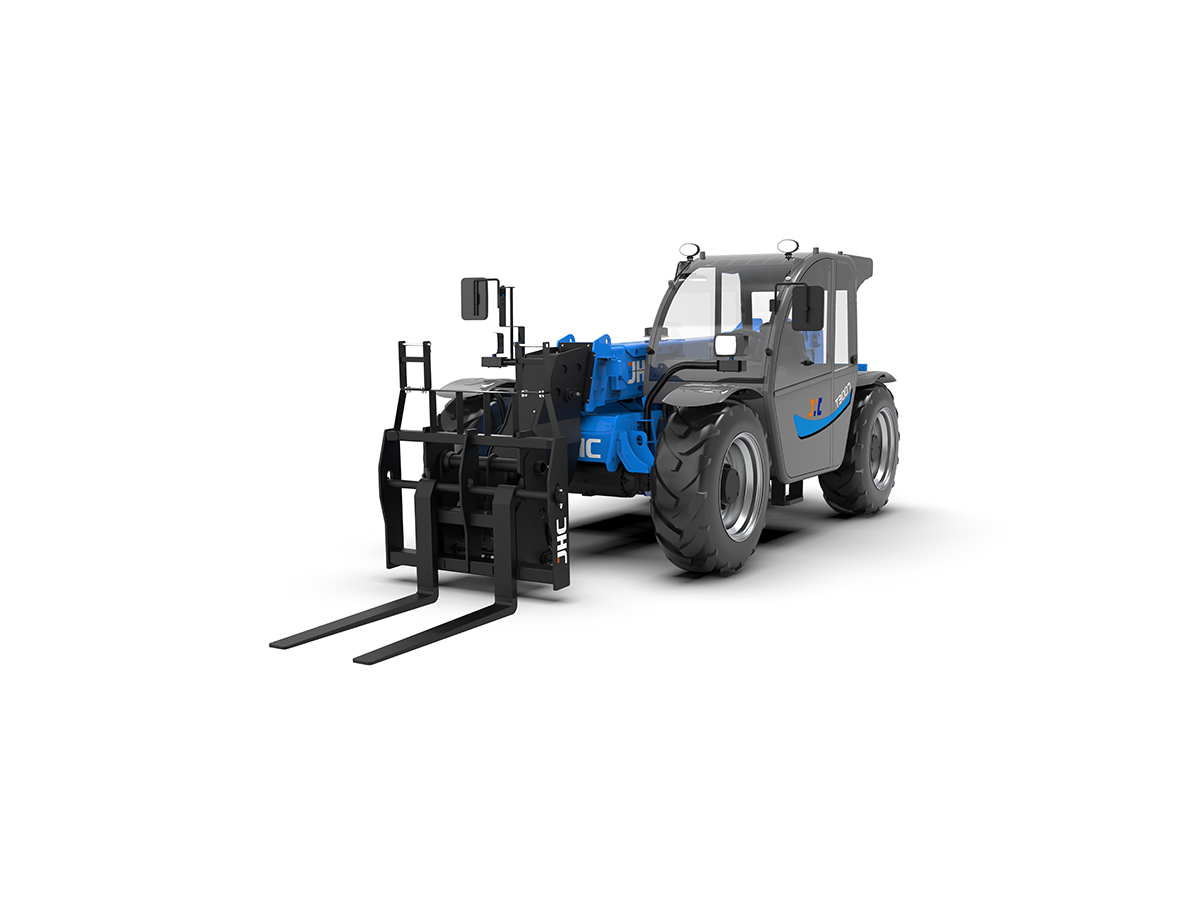

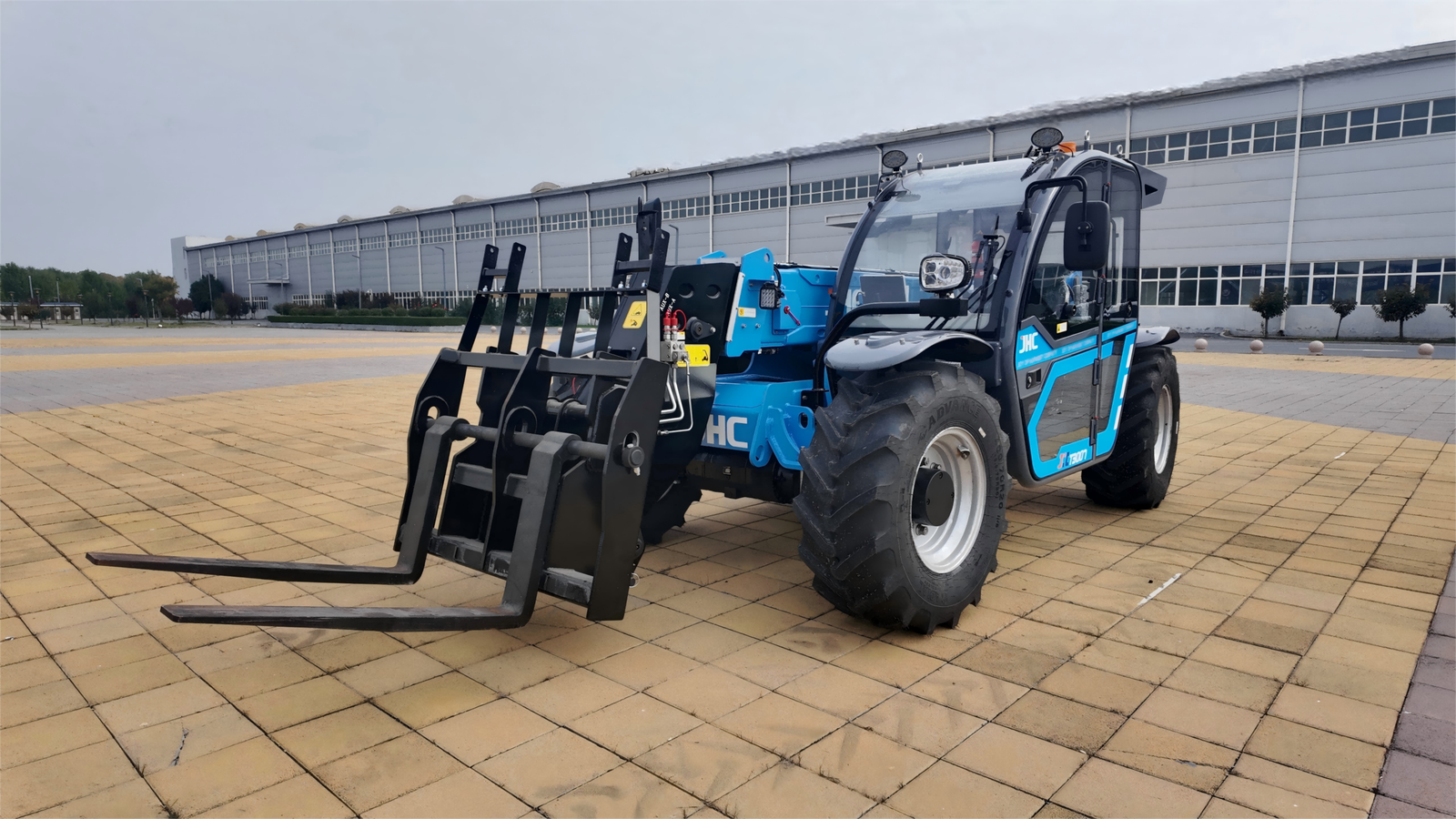

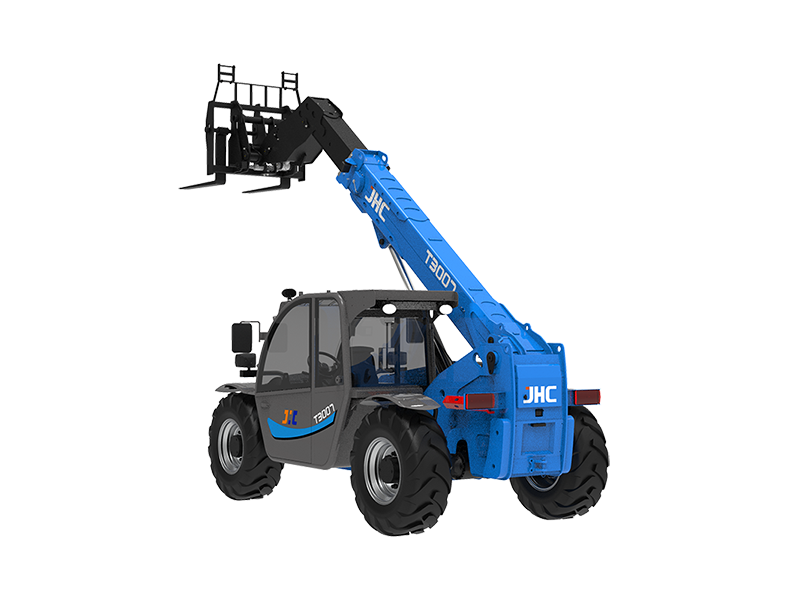

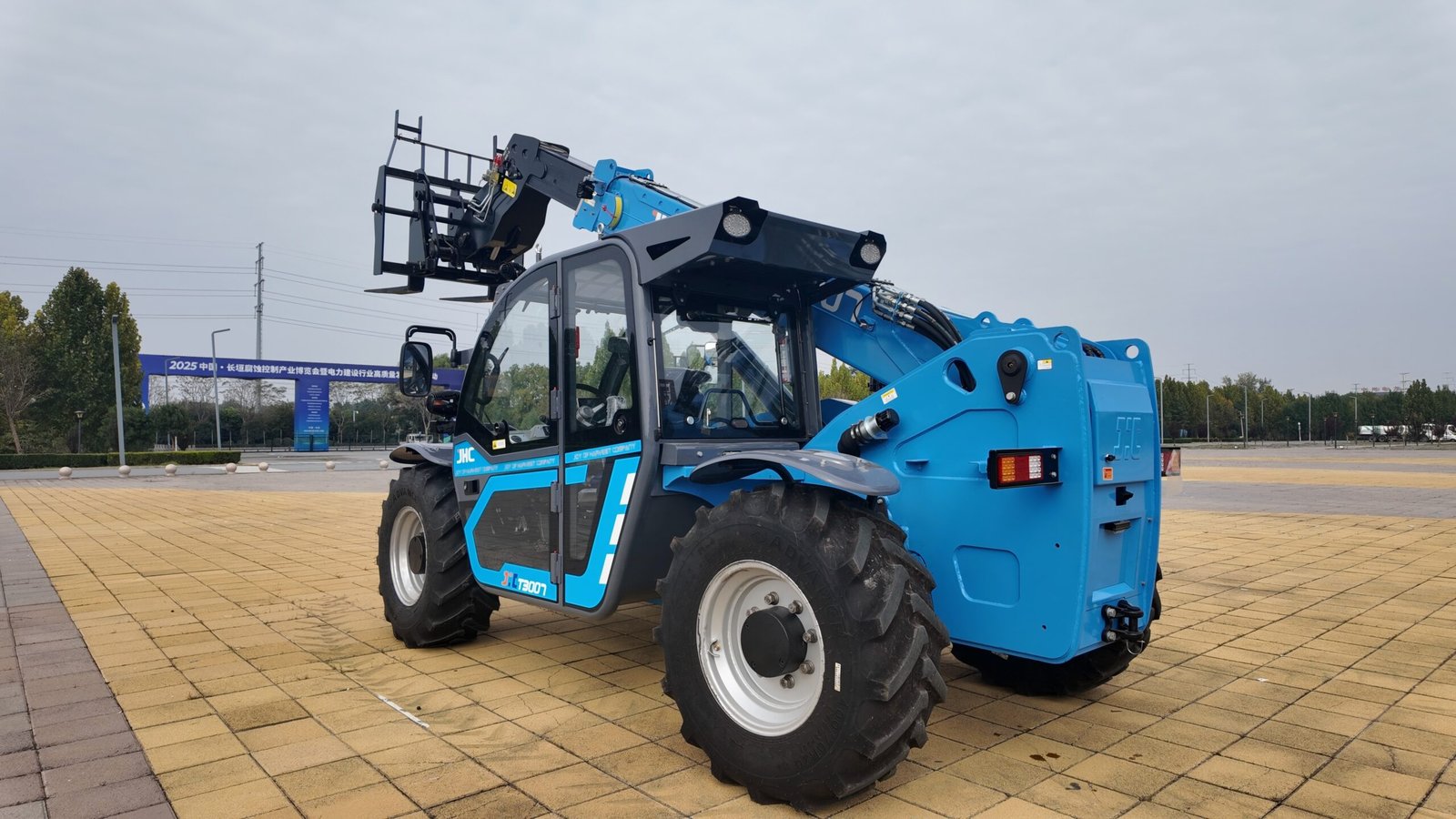

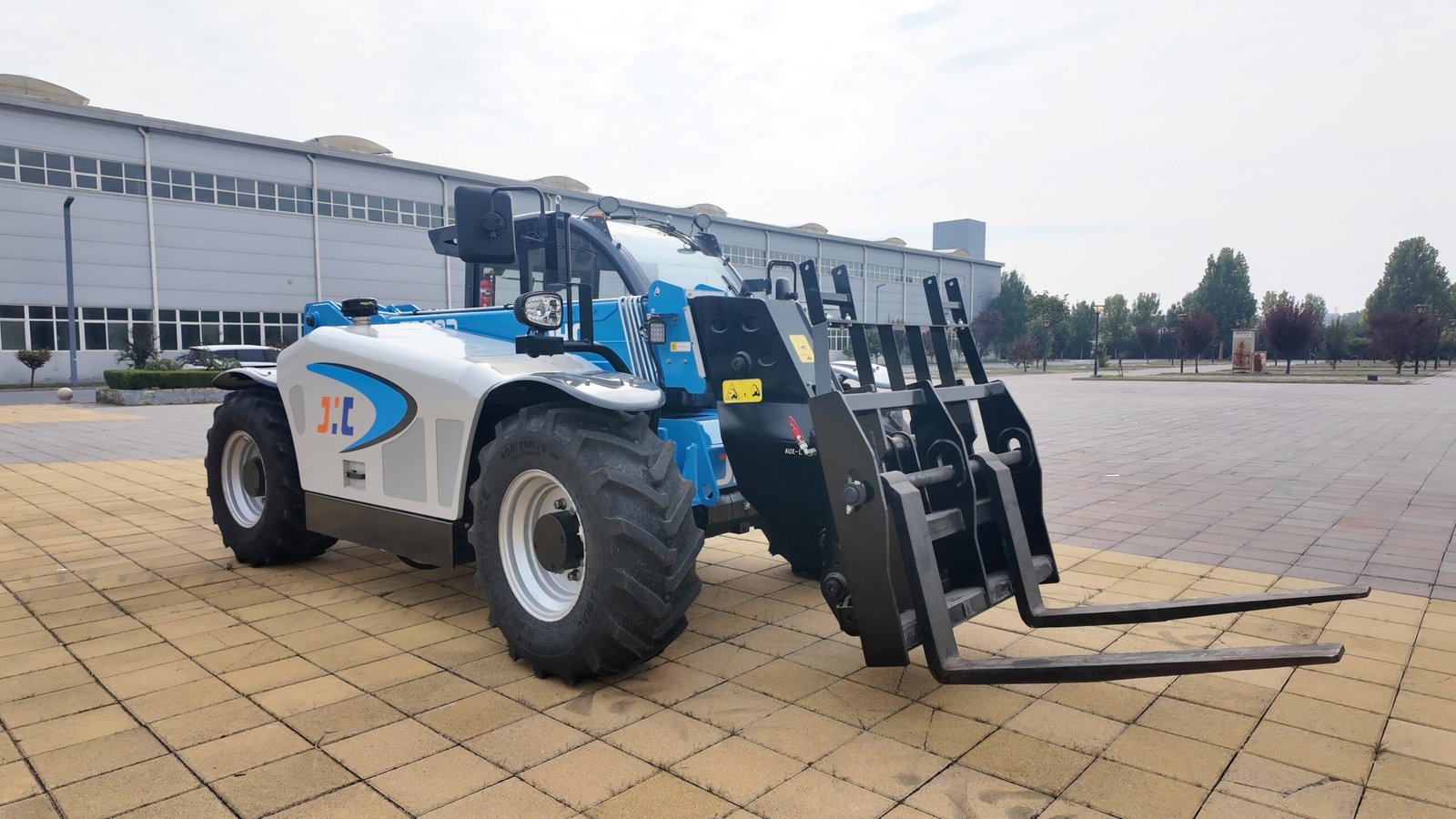

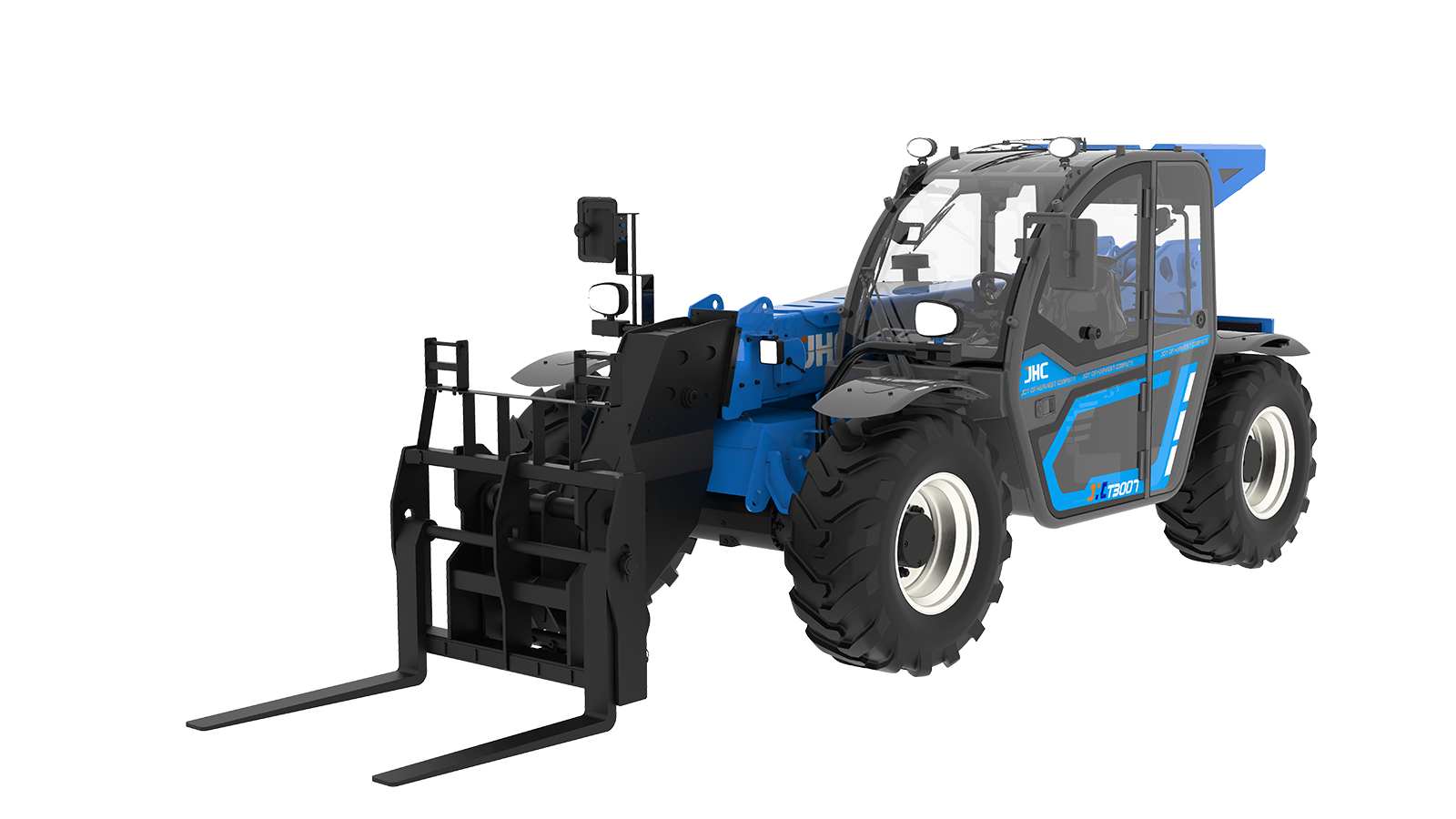

Телескопический погрузчик T3007

An all-new design of boom is with different types and sizes of attachments for different working conditions.

  • Rated Capacity 3.2T
  • Max Height 6.7M
  • Max Outreach 3680mm
  • Engine Power 55.4KW
Product Technical Performance
In driving mode, the maximum driving speed can reach 30km/hnnAdopting precise electronic control device to control vehicle in working and driving, preventing adverse factors during driving.nnCAN bus integrated with joystick, capable of performing multiple composite tasks with one hand.nnIndependent cooling system, engine compartment cooling outlets designed with reverse-blow function.
Product Technical Features
The inching function, which allows precise control of the vehicle in ultra-low speed, makes it safer to lift goods with forks.nnAdopts a 360 °full view cab, with optional operation monitoring and reversing camera.nnThe steering wheel can be adjusted high or low, and the armrest can be adjusted up or down.nnAdopts aviation style seats, air cushion combined with hydraulic shock absorbers offers more comfort for operator.nnElectro-hydraulic proportional control system, and the hydrostatic drive system is capable of achieving continuous speed variation.nnTwo control modes for bucket operation and fork operation, which can be quickly switched with one click.nnOptional bucket shaking function for quick dumping of materials.
Product Technical Parameters
ParameterT3007
Vehicle
Rated lifting capacity3200kg
Maximum lifting height6700mm
Length (Excluding Fork/Including Fork)4735/5920mm
Width2100mm
Height2100mm
Operating weight6500kg
Performance
The forward extension length of the fork at its highest point600mm
Maximum horizontal outreach3680mm
Load at maximum forward extension of fork1100kg
Ground clearance330mm
Minimum turning radius3800mm
Maximum driving speed30km/h
Full load climbing ability45%
Engine
Engine modelKubota
Emission standardEuro V
Engine power55.4kw
Maximum torque265Nm/1500 /rpm
Drive/Steering
Drive modeHydrostatic Drive
Driving Type4x4
Steering mode2ws, Crab Steer, 4ws
Miscellaneous
Tire model405/70-20-20PR-TL
Fuel tank capacity100L
Hydraulic oil capacity90L

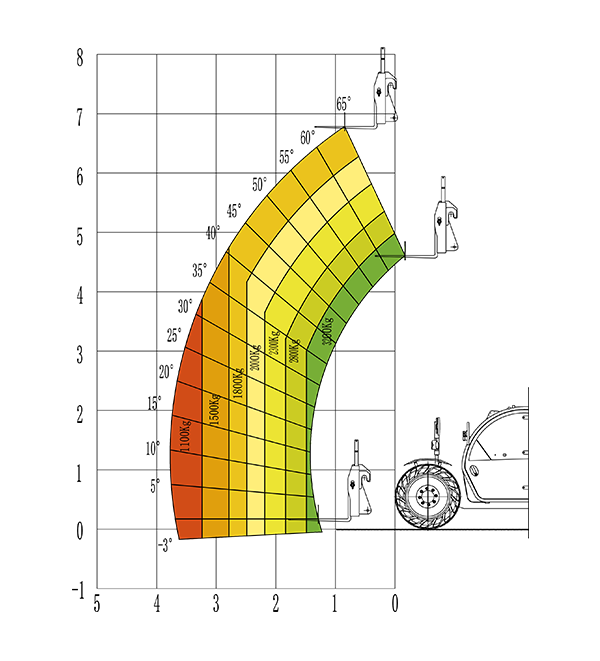

Product load chart
